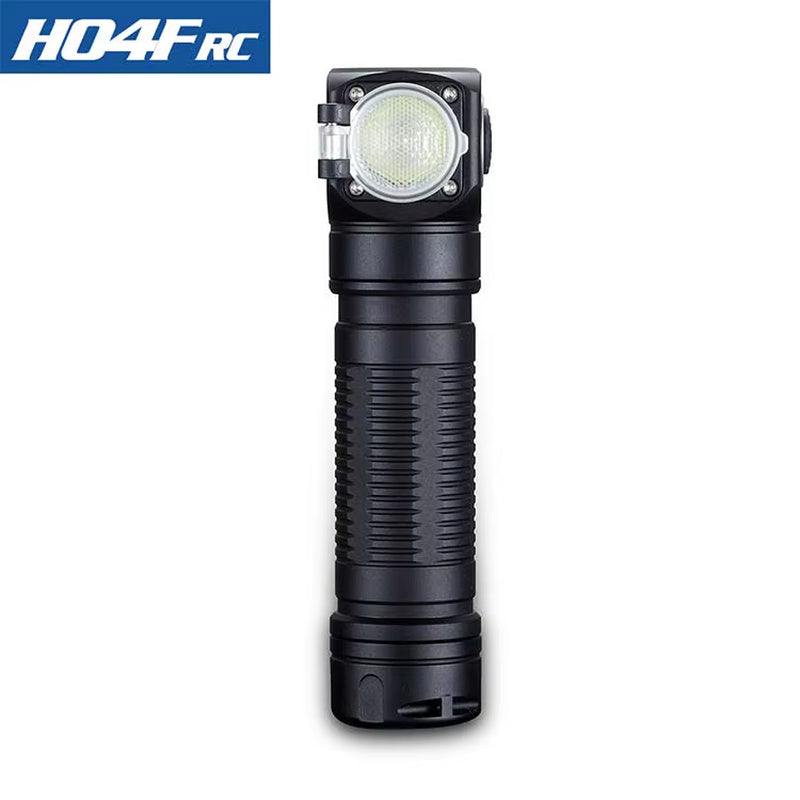

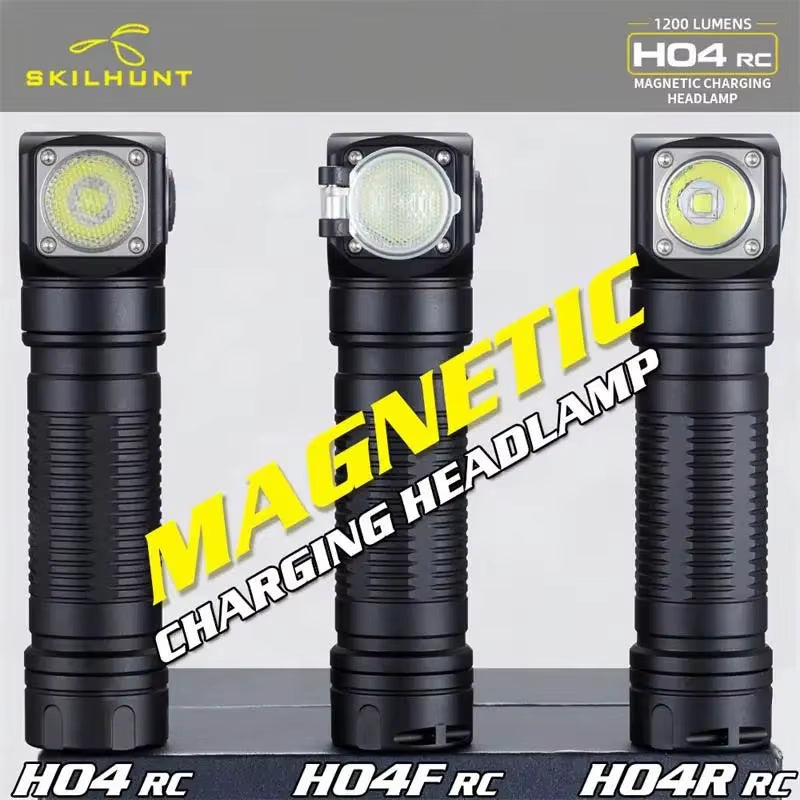

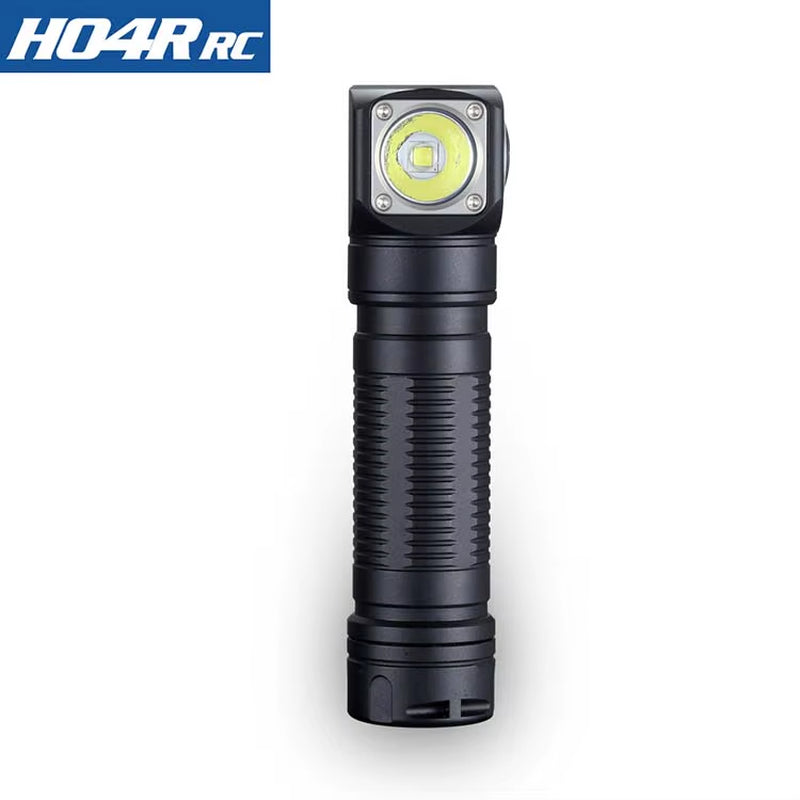

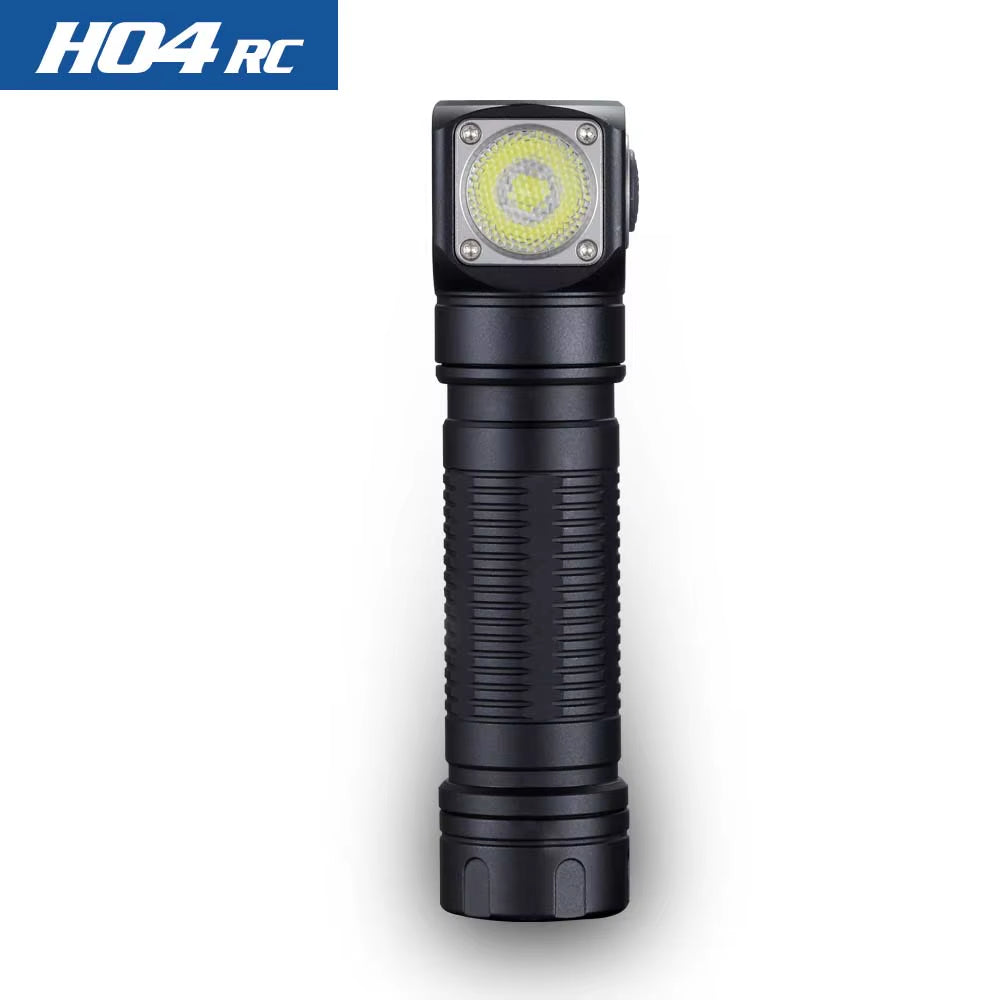

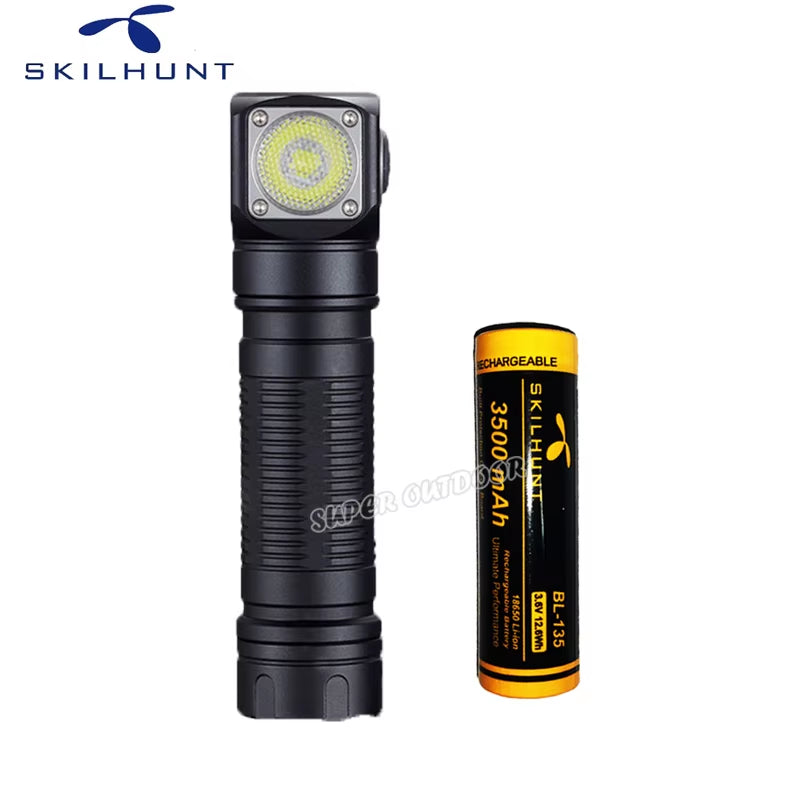

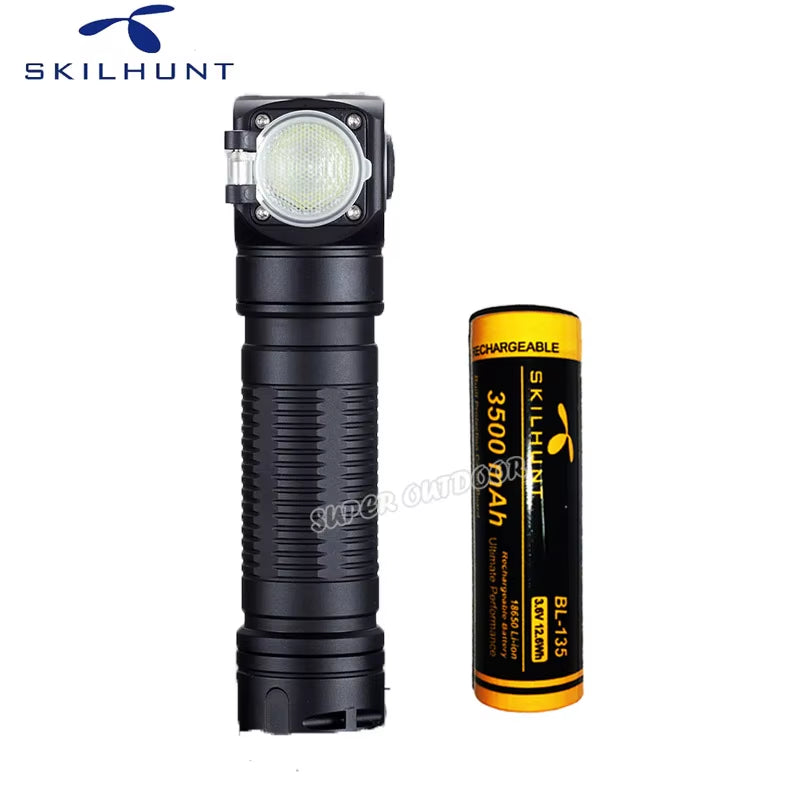

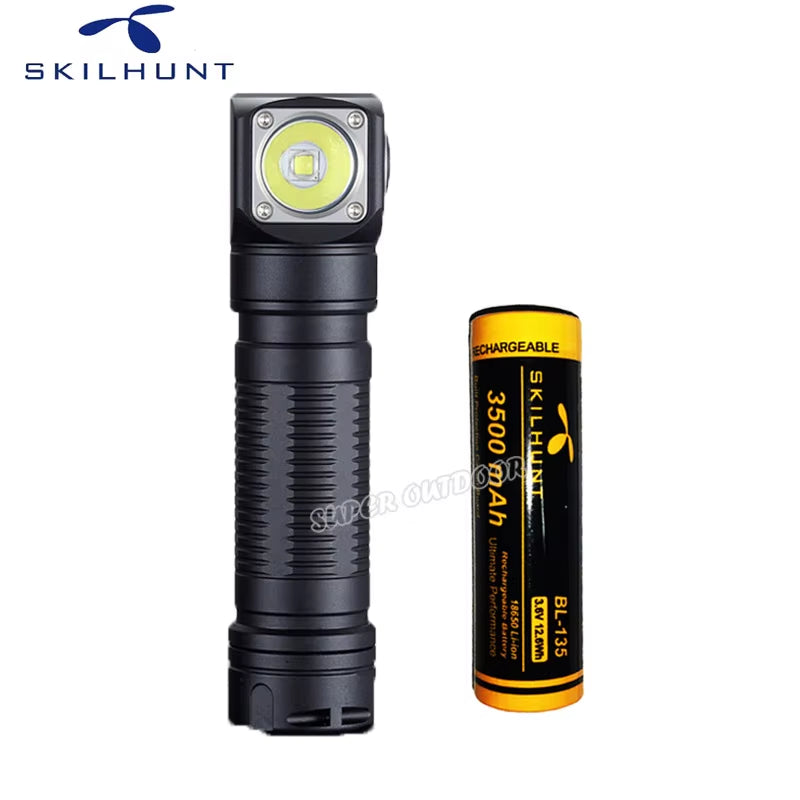

H04 H04R H04F RC 1200 Lumen Customized UI USB Magnetic Rechargeable LE

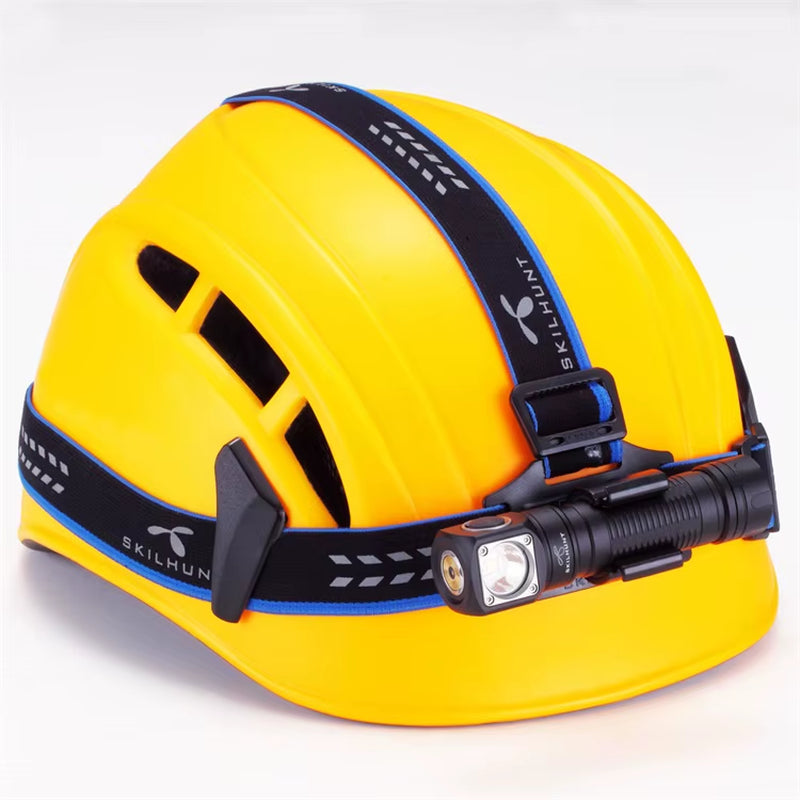

H04 RC/H04R RC/H04F RC LED headlamp

LED: CREE XP-L2 CW & NW / Nichia 519A High CRI

Max output:

ANSI 1000 Lumens / 1200 LED Lumens ( XP-L2 CW 6500K & NW 5000K) /

ANSI 700 Lumens / 850 LED Lumens (Nichia 519A R9080)

Max runtime: Few months

Max beam distance: 123 meters

Max peak beam intensity: 3800cd

Waterproof: IPX-8

Impact resistant: 1 Meter

Battery: 1×18650 , 2x CR123A , 2x RCR123A

Rated Range: 2.7V ~ 8.4V

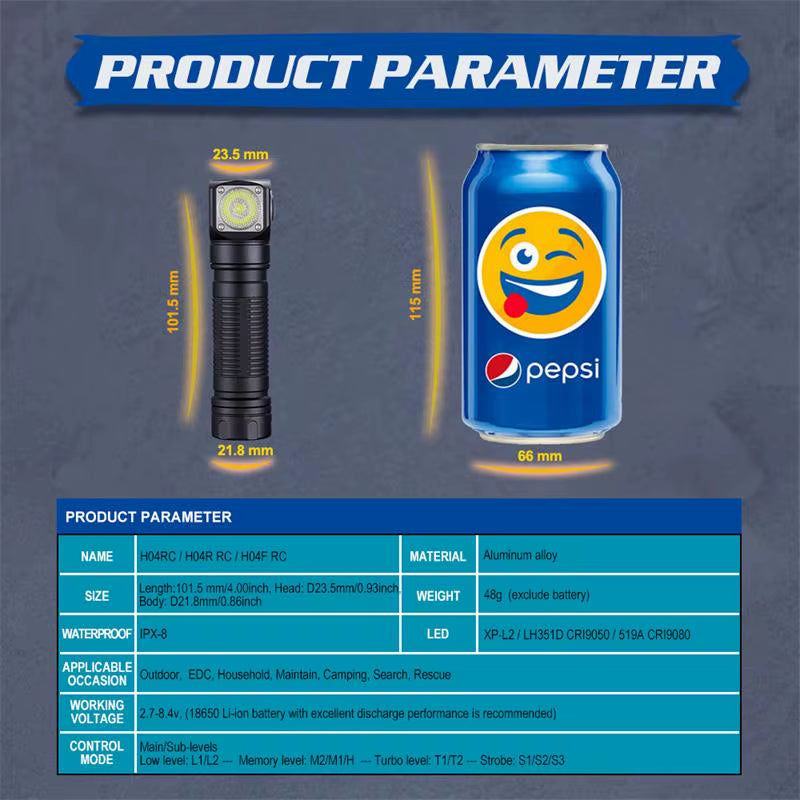

Dimension:

Length 99.9mm / 3.93 inch

Head diameter 23.5mm / 0.93 inch

Body diameter 21.6mm/0.85 inch

Accessories:

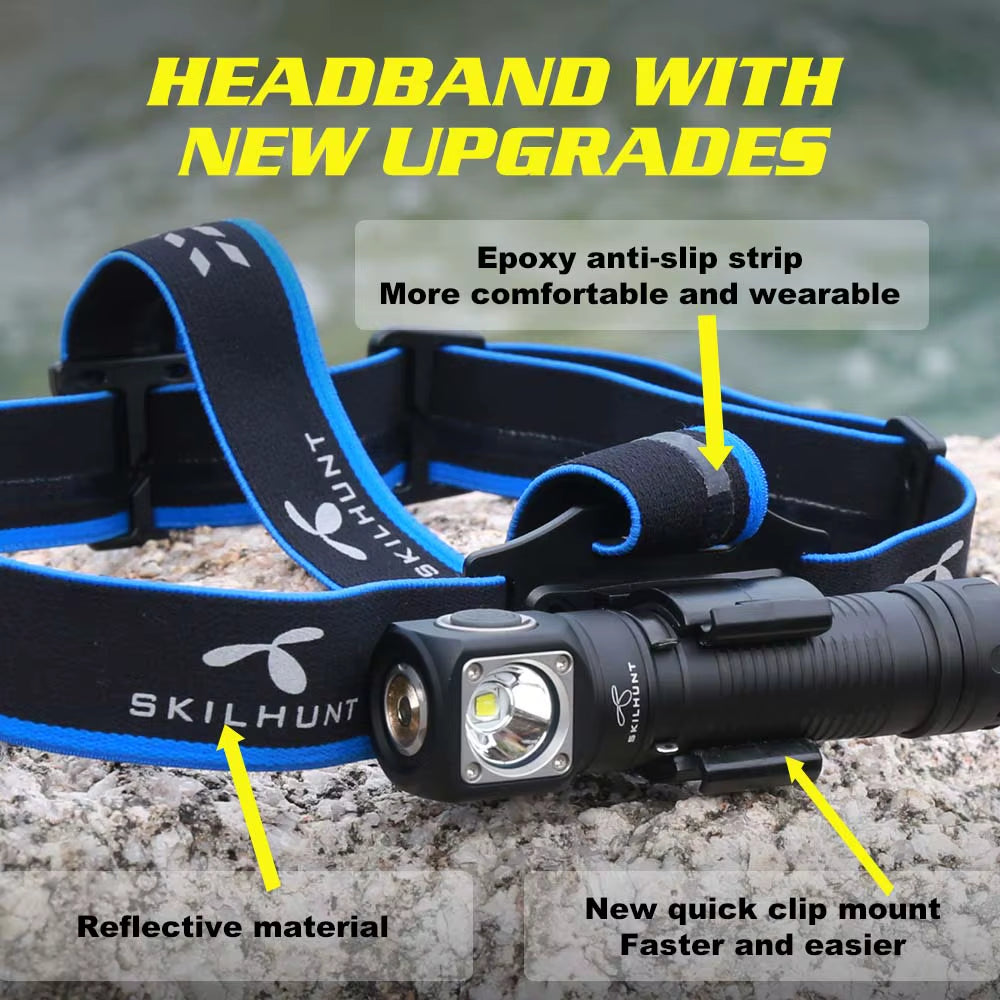

Headband,magnetic charging cable,clip, lanyard,magnet replace rubber pad, Operator’s manual, Warranty card, Spare O-ring

Power indicator

Every time turn on , the side indicator will be light 5 seconds to display the battery power.

Blink four times : battery power in 100%~80%;

Blink three times : battery power in 80%~50%;

Blink twice : battery power in 50%~20%;

Blink one time : battery power below 20%.

Charging instructions and notices

In charging, the red indicator constant light on, when battery almost full charge, indicator change to constant blue light. When the red indicator flash, please check battery contacts good or not.

Warning: Rechargeable function only for one 18650 (3.6/3.7V) rechargeable lithium battery! Please make sure the battery is correctly insert, otherwise it will damage the charging system.

Features

1.Super bright Max 1200 lumens. High-Performance, High-Efficiency and energy conservation.

2.New U.D.O.C Reflector. Increased reflectivity over 10%., Efficiency reflection, perfect beamshot, excellent structure and temperature resistance.

3.Rugged indestructible aluminum body with anti-scratching type III hard anodization

4.Multi-level dissipating heat designand new copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.

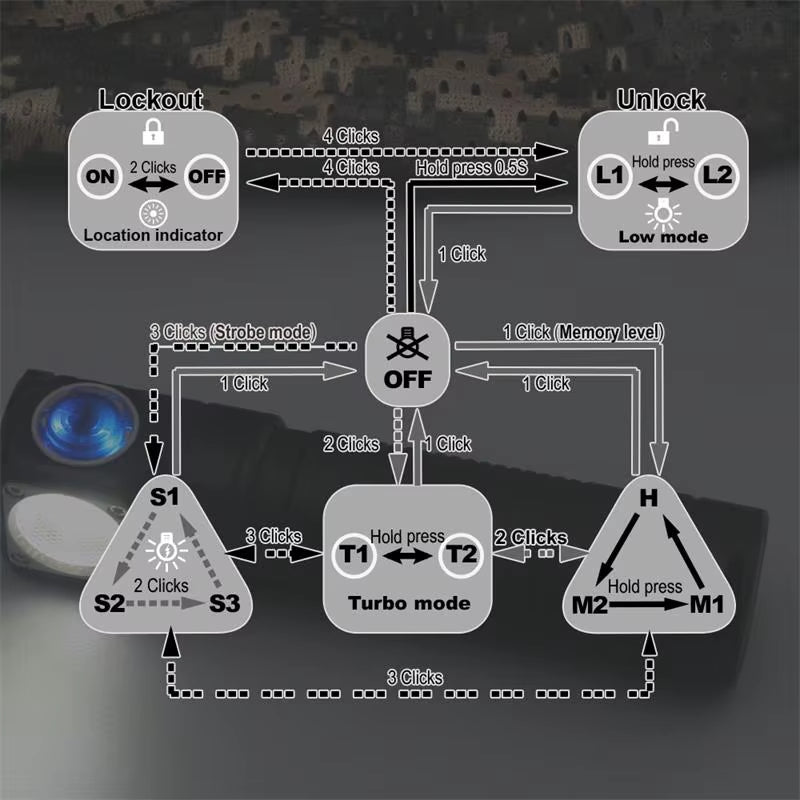

5.Side switch button to transferring mode, user-friendly interface to adjust output.

6.Two mode groups plus editable brightness, more use options for choose.

7.Wide input range provides more choices of batteries. High efficiency driver circuit, no visible flash in any mode.

8.Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.

9.Intelligent temperature control technology for flashlight stable and safe use.

10.Reverse polarity protection, to protect from improper battery installation.

11.When turn off, hold press button to activate lockout function. Avoid light turn on by unexpected.

12.When light lockout, location indicator will flash, easy get the light in dark.

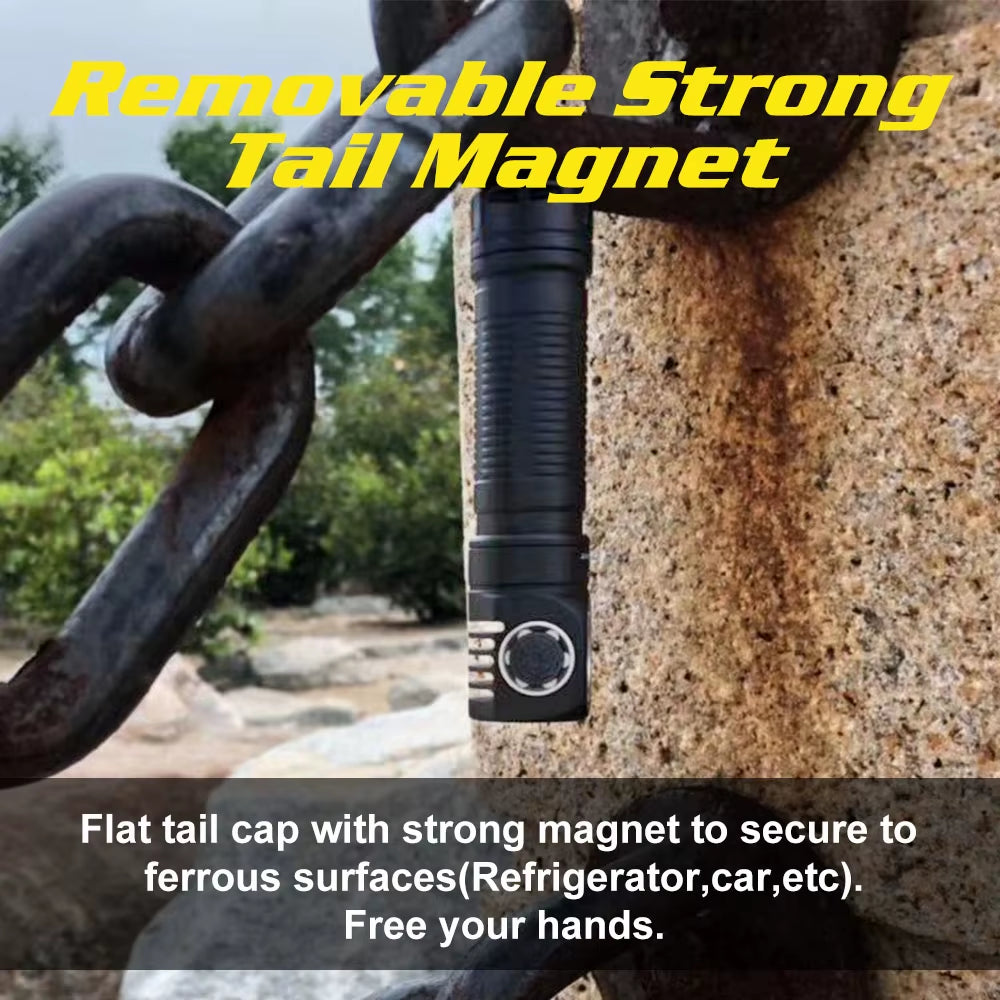

13.Magnetic tail, can be used in many special occasions, use as candle light, etc.

Usage and Maintenance

Use quality batteries so as not to damage the light due to leaks or other self-destructive possibilities.

Remove batteries when light will not be used for an extended period or if batteries are discharged.

When using Li-ion batteries,we recommends the use of protected batteries. Clean contacts, threads and O-rings of the flashlight with clean cloth from

time to time when necessary.

Should flickers or doesn’t light up this the most likely cause.

If flashlight is used in wet environment, lubricate O-rings frequently to

maintain watertight seal. inspected and cleaned if necessary.
